Charles Fasoldt, Albany, New York, USA, 1874. This clock was a model made by Fasoldt in 1874 to demonstrate his detached gravity escapement and remontoire dial actuator used in the tower clocks his firm produced. The model as well as a full sized tower clock that mirrored the model was exhibited in the Philadelphia Centennial Exhibition of 1876 and was awarded a gold medal. The escapement was used in his other domestic clocks that had the pendulum above the movement and the dial remontoire in the ten tower clocks he built. Of the four I know of one was installed in the Pennsylvania Reading Railroad, Albany Bank, and two still in their original installations at the University of Northern Iowa (since moved in 2020 from the base of the Campanile tower to the University president's office - it's good to be president) and the Union Church (now the Ebenezer Baptist Church) in Newburg, New York.

Fasoldt is considered one of the finest and innovative American clock and watch makers. He had a fairly limited production of about 350 watches, 20 domestic regulators, 10 tower clocks and this model, making his work quite collectible. The model described here being unique.

His regulator and shelf clocks are highly prized and of the finest quality and his extremely rare tower clocks of which only 4 are known in addition to this model are of great importance to historians and collectors. The one at Newburgh, New York, being the only remaining example in its original installation and still running, and was restored in 1996-98 by members of the NAWCC. One he made for the 1876 centennial remains on display at the Northern Iowa State University but is no longer functioning. His clock movements are even more beautiful than his watch movements. Charles Fasoldt was born in 1818 and was a native of Dresden, Germany. He emigrated to the United States in 1848, and from 1849 to 1861 he lived in Rome, N.Y. He moved to Albany in 1861 and lived there for the rest of his life, dying in 1898 and passed away at 9:00 PM on May 13, 1898.

Click on pictures for more details  ALL photos below curtsey and copyright Donald Saff

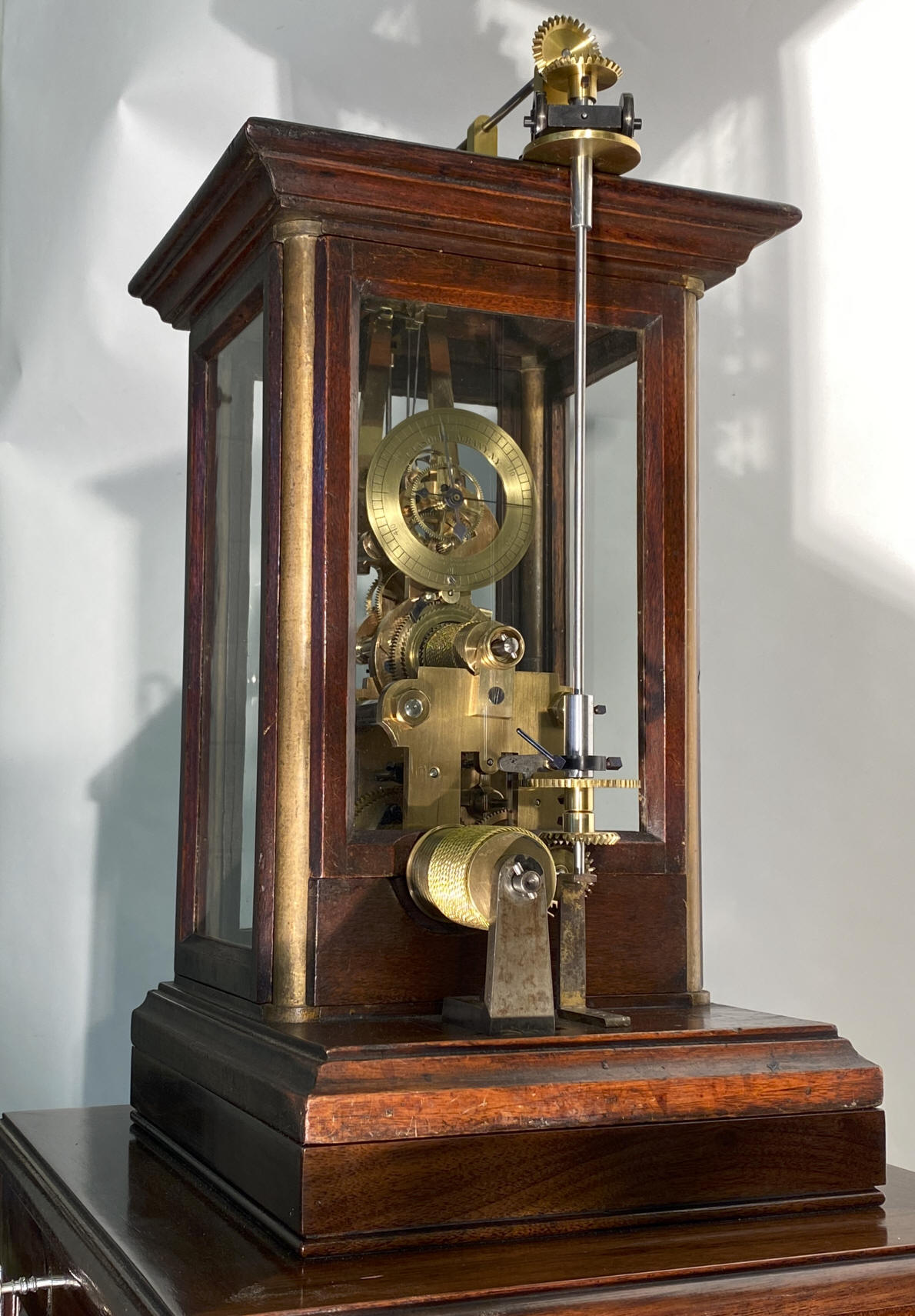

The case containing the movement is original to to the clock. This is mounted to a purpose made case to house the weights.

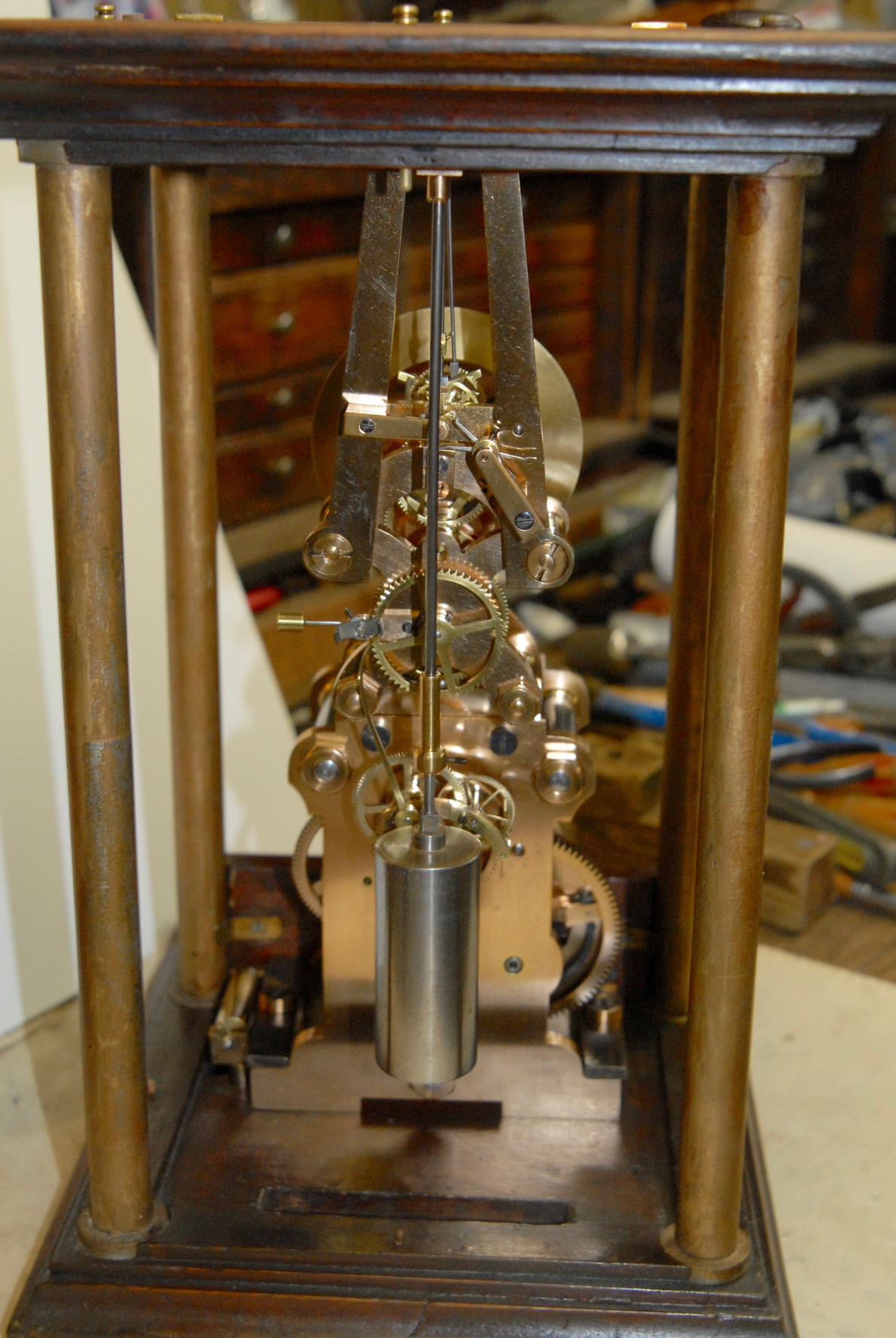

Rear elevation of the movement. Note the slot below the pendulum. The full sized tower clock at the Centennial Exhibition also had this same slot cut into the bottom of the clock case to allow the one second pendulum rod to pass through. I wonder if the original design Fasoldt had for this model used a one second rather than one-half second pendulum. In my opinion there is no question the half-second pendulum is far more visually interesting than would have been a one second pendulum rod moving through the slot.

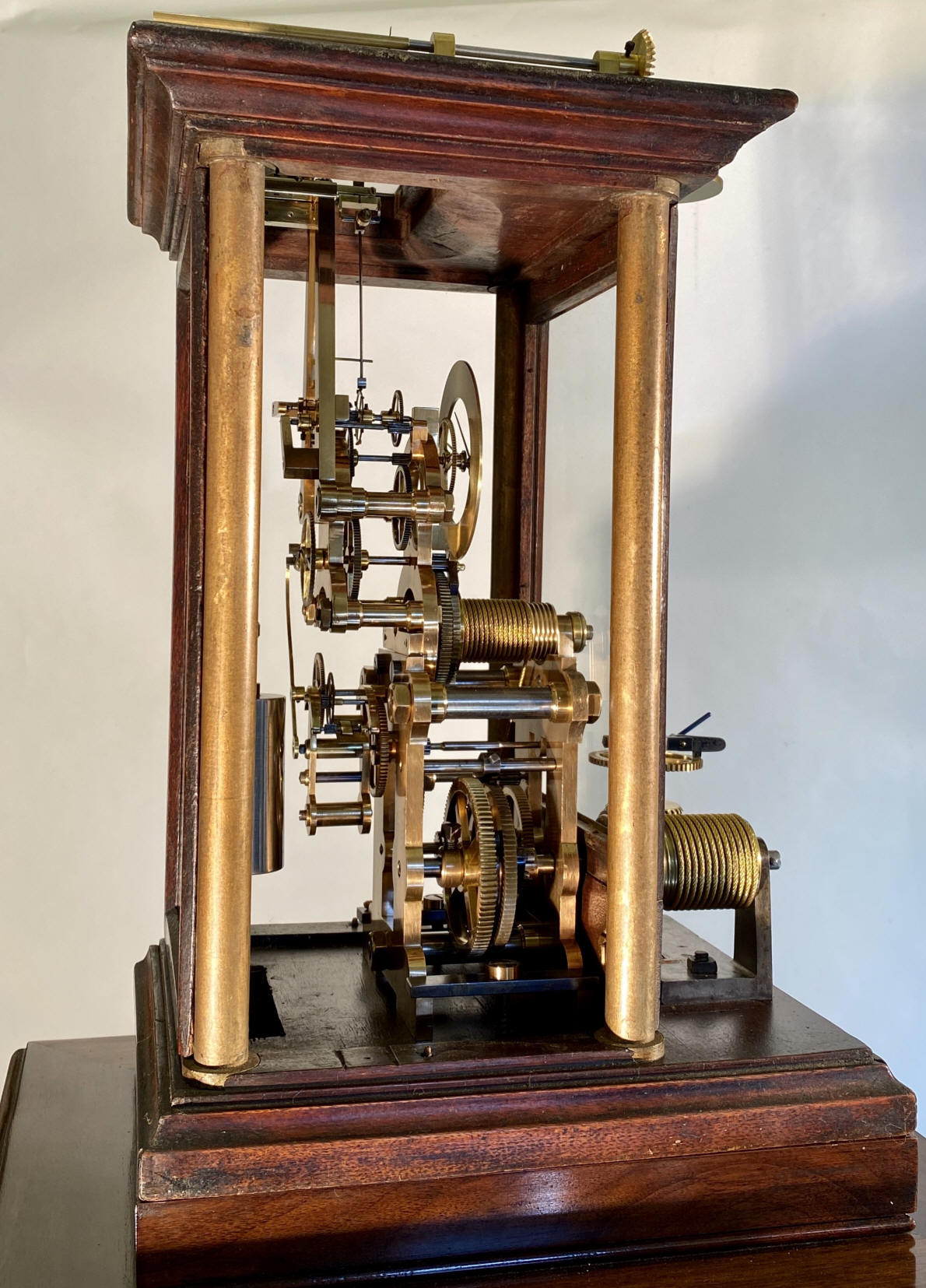

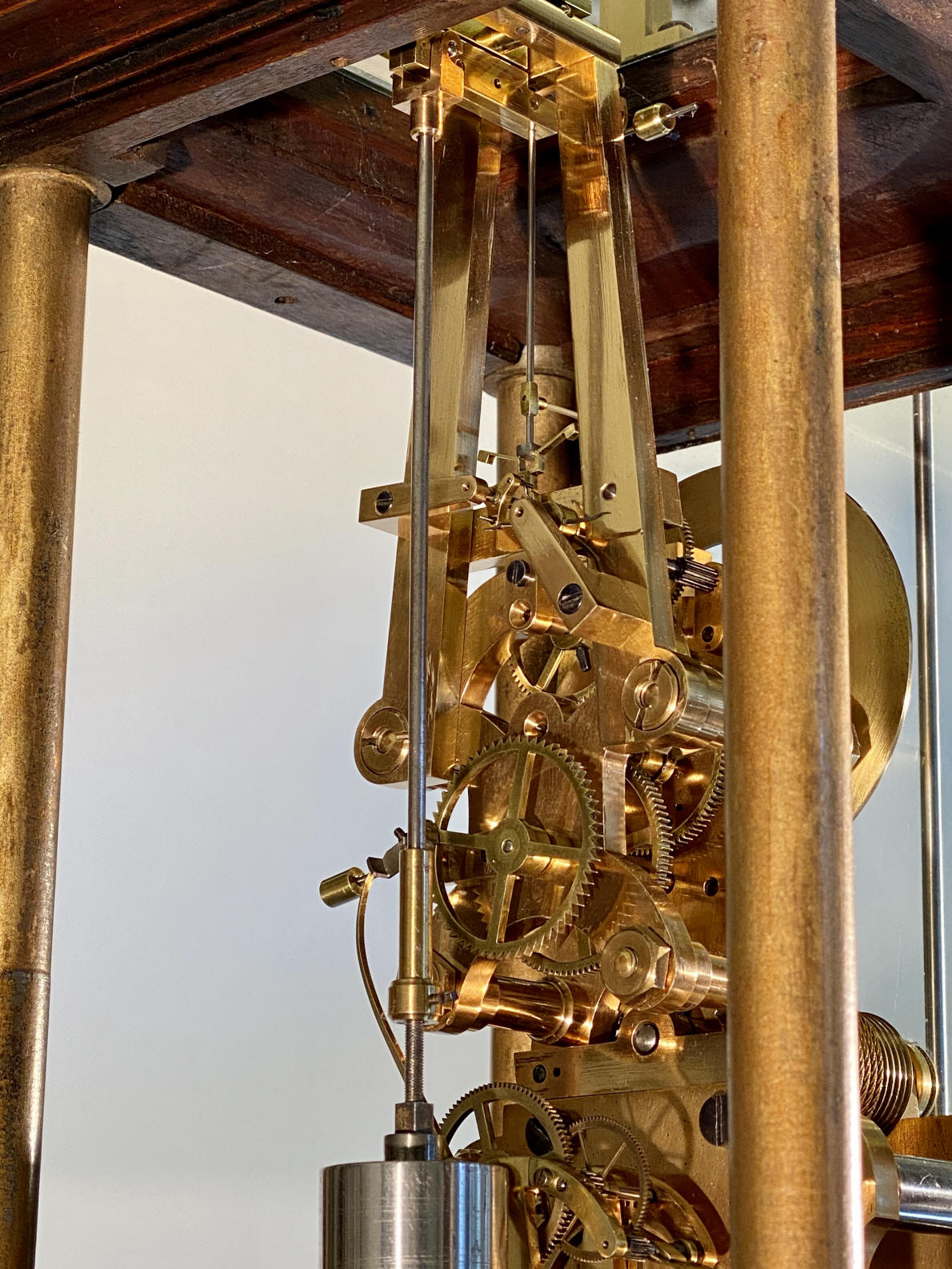

Highlighted here is the 'teeter-totter' mechanism driven by the pendulum and performs the locking function of the detached gravity escapement.

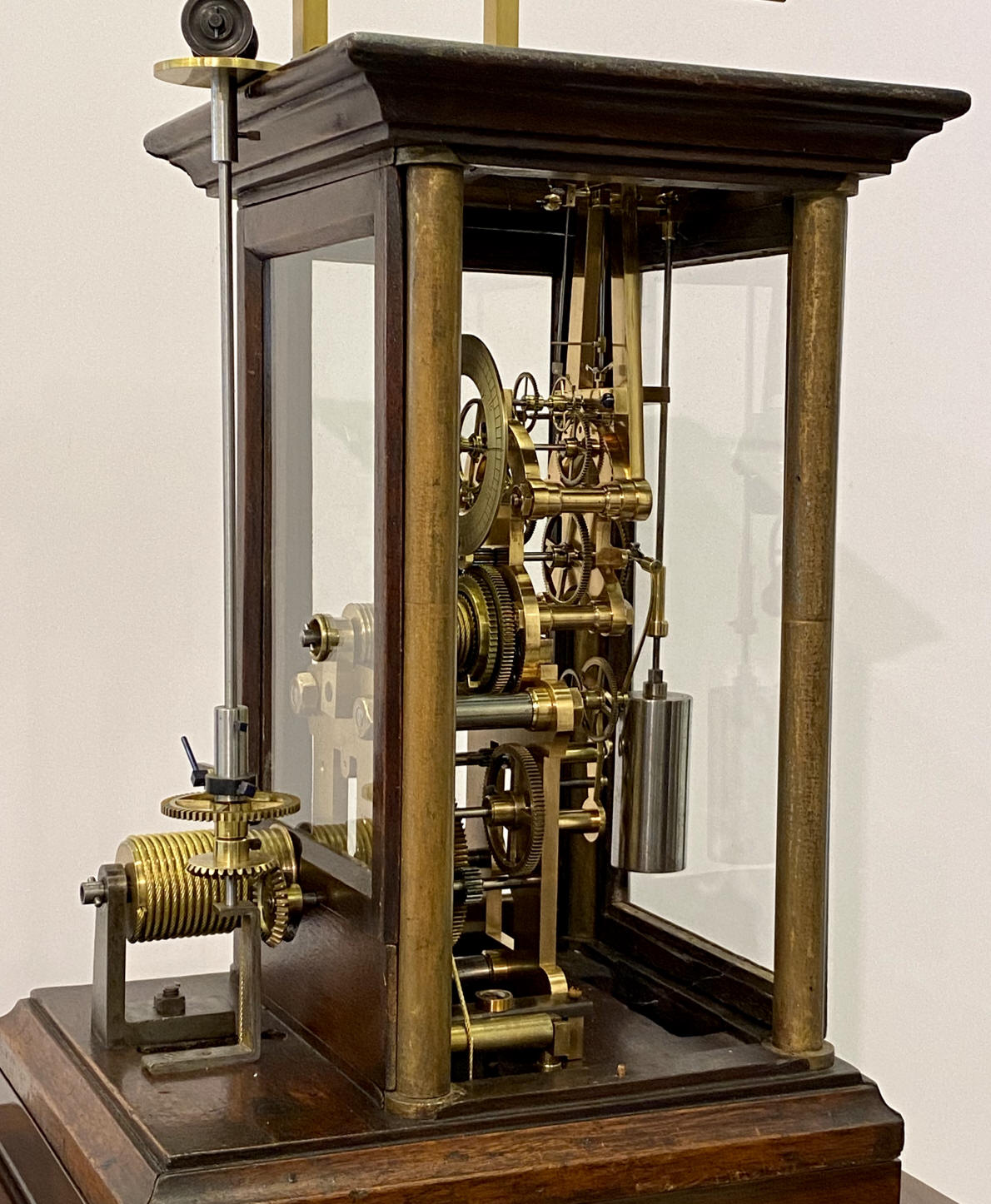

Front and right three-quarter view.

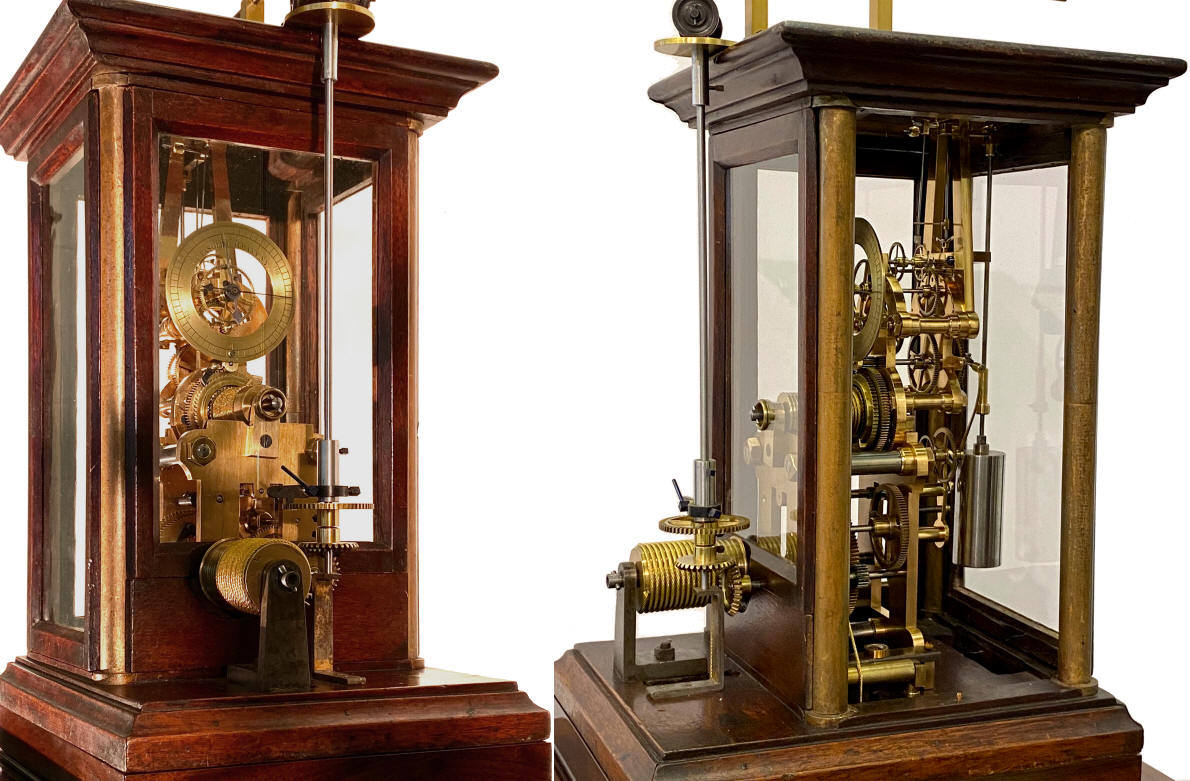

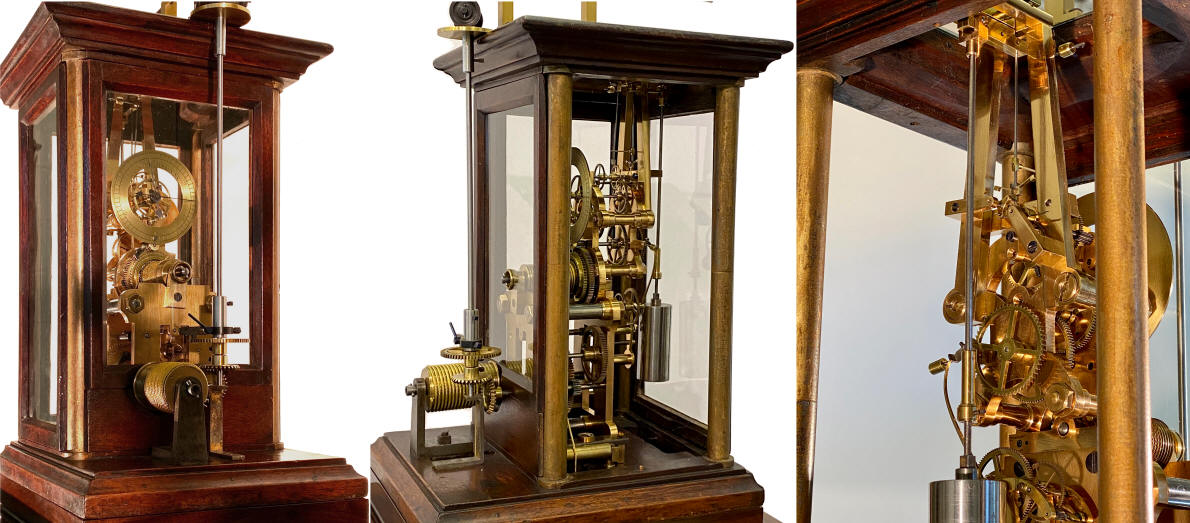

Several positions of the model.

Videos curtsey and copyright Donald Saff



This video shows an overview of the Fasoldt model in relation to the Philadelphia Centennial Exhibition of 1876



This video demonstrates Fasoldt's detached gravity escapement, the separate lock and impulse devices as well as the dial drive remontoire.

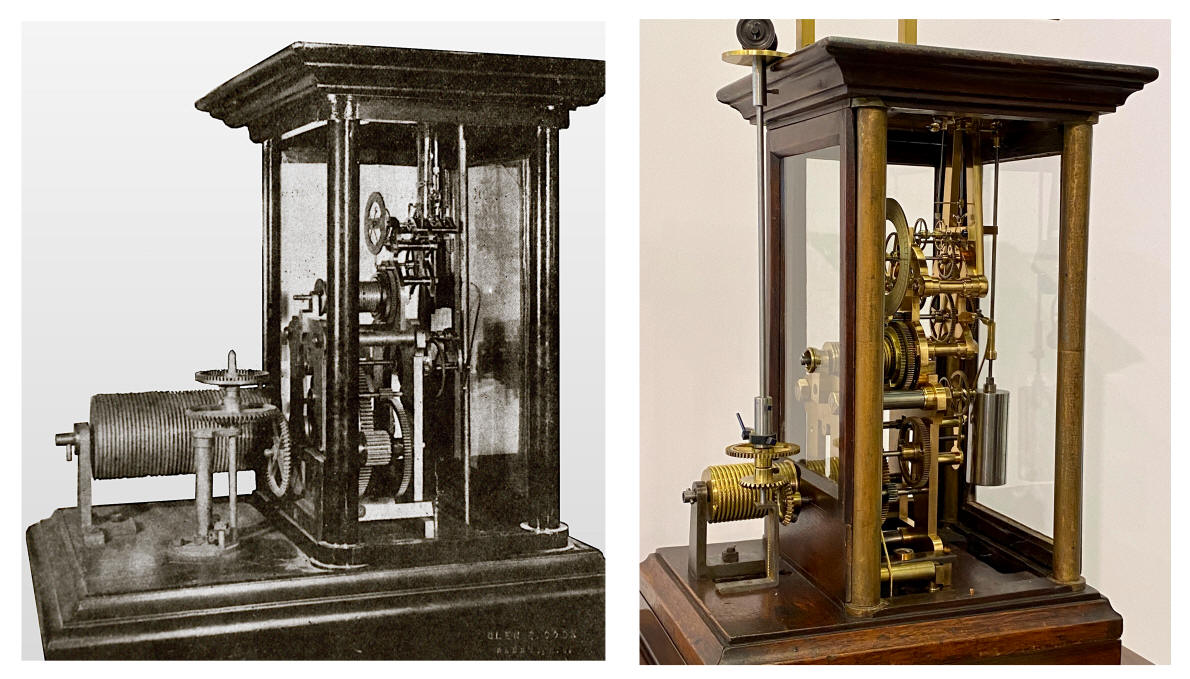

The full sized tower clock was also on exhibit at the Centennial exhibition along with this model. Later Fasoldt's grandson, Dudley donated the tower clock to the University of Northern Iowa in 1927.



Front of gold medal awarded to Fasoldt for his model at the 1876 Philadelphia Centennial Exhibition.

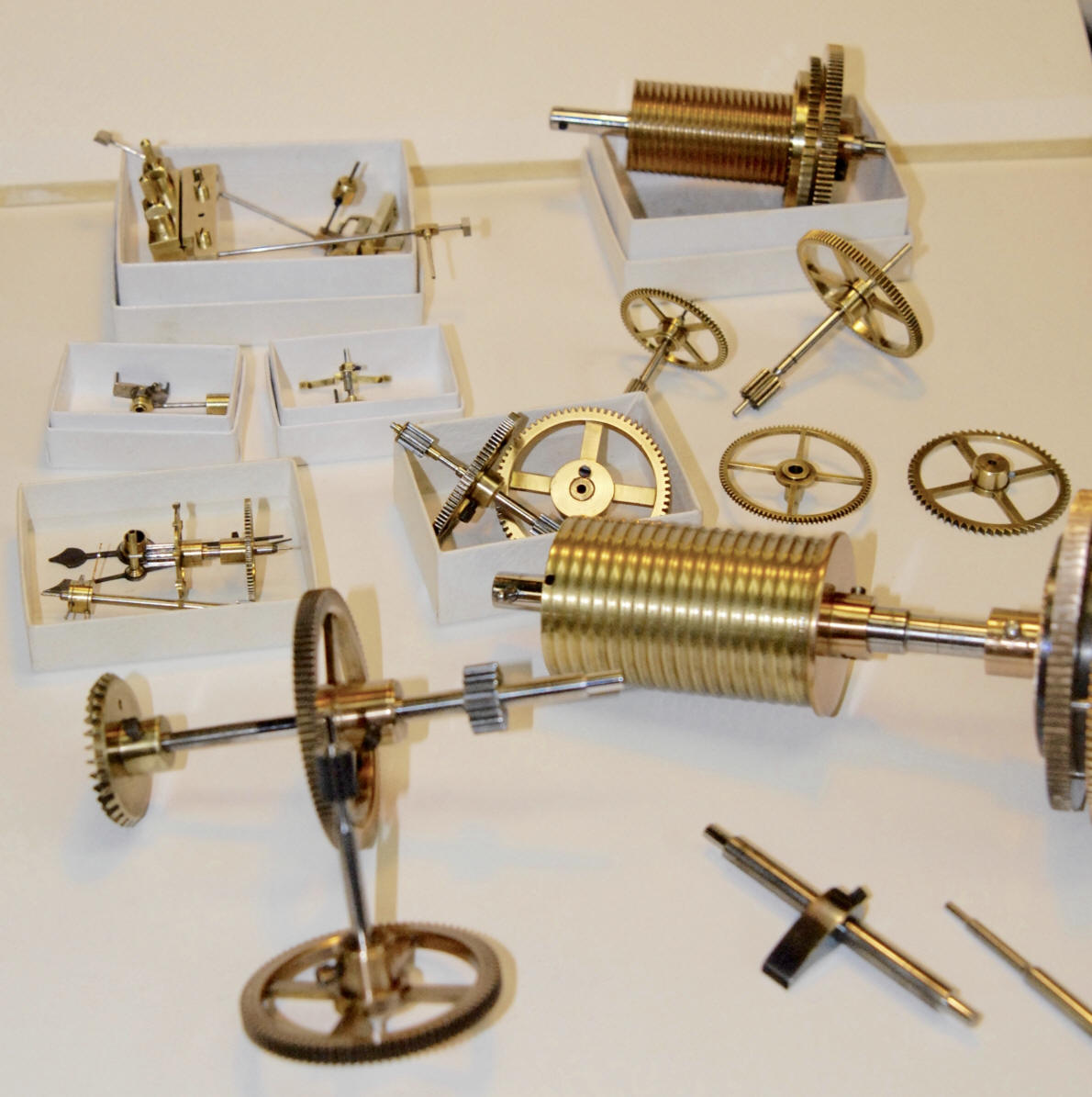

Restoration of the model. When found it was not in running order, although all of parts were there.

Provenance: Charles Fasoldt, maker, by decent Dudley Fasoldt, grandson; Major Paul Chamberlain; Orville R. Hagens, John Miner, Sr by decent John Miner, Jr., Steven Thompson (Sundial Farm),  Donald Saff, 2016.
