Maker, Warren Telechron, Inc., Ashland, Massachusetts, USA. Model Type C, 1926, serial no. 7. Page 5.

Restoration page 3. General cleaning and repairs, wood case.

The lower end of the wood case had been exposed to some humidity and so the base plate had some separation. A few of the individual sections as well as the some lower wood panels were loose.

Telechron C (24).JPG (2158019 bytes) Telechron C (25).JPG (2382895 bytes) Telechron C (109).JPG (2106049 bytes)

First the base plate was glued to secure the separated layers.

Telechron C (110).JPG (2358504 bytes) Telechron C (111).JPG (2067971 bytes) Telechron C (112).JPG (2244651 bytes)

All of the loose pieces from the lower end of the case were removed. Then a wood glue was applied to the appropriate areas to secure the loose pieces.

Telechron C (113).JPG (2130760 bytes) Telechron C (114).JPG (2086773 bytes) Telechron C (115).JPG (2379658 bytes)

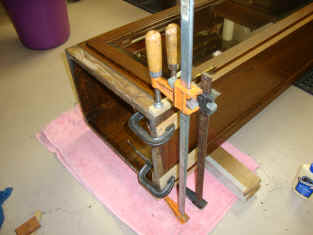

Multiple clamping operations were employed throughout this process.

Telechron C (27).JPG (2220482 bytes) Telechron C (29).JPG (1925162 bytes) Telechron C (100).JPG (2125323 bytes)

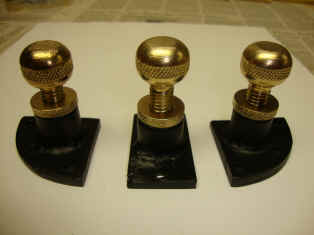

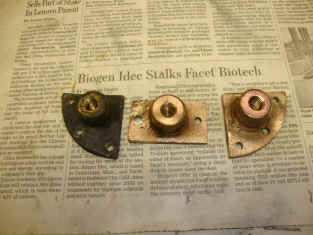

Next the refurbished case feet were secured.

Telechron C (35).JPG (2199151 bytes) Telechron C (36).JPG (4227993 bytes) Telechron C (37).JPG (2326845 bytes)

The first photo is the original condition of the control section, next the refurbished area and last the restored electrical gear installed.

Telechron C (73).JPG (1859992 bytes) Telechron C (38).JPG (1901174 bytes) Telechron C (40).JPG (1994820 bytes)

The tiger oak case is now restored and ready for the movement.
