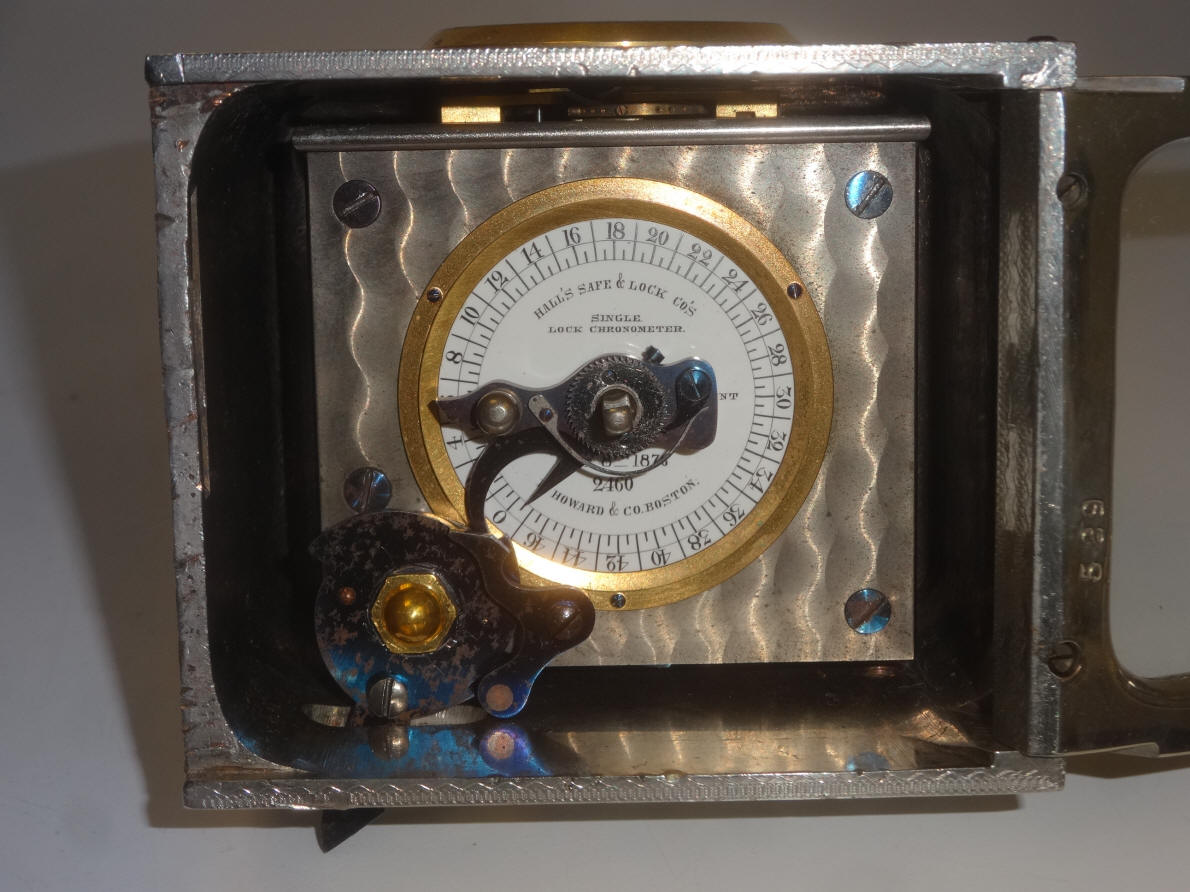

This is a demonstration of the Hall safe & Lock Company's delayed action
feature. Basically this is a rotating lever that can be
moved manually, clockwise and is attached to a center ratchet gear mounted
to the center wining arbor. One can use this to allow one to keep the lock
off guard for a number of hours after the time lock has been set. In other
words one can set the lock to be on guard for the next 14 hours by winding
the timer to 14 hours. And then set the rotating lever to 2 on the dial. The
safe can then be used for the next two hours with the combination lock and after that time the lock
will go on guard for the remaining 12 hours. This lets the operator to
preset the lock before closing time.
Single movement by this company that was the predecessor of the Consolidated
Time Lock Company c.1878. Time locks made under the Hall name are rare as this company was
only in business a few years before being merged into the Consolidated Time Lock Co. in
January of 1880 to insulate his successful safe and lock business from his risky and
untested time lock business.(1) Actually, only the name changed as the time
locks themselves were identical. All of Hall's and Consolidated's single
movement time locks were designed to be operated with
Infallible lockout protection system which allowed the safe owner
to open the safe should the single movement fail. A rare but very real
possibility. One would call the Hall company for a "secret combination" that
when dialed in along with the regular combination would override the stopped
time lock. This was done to lower the cost associated with another movement.
Soon, however, timer redundancy of two or more movements replaced the single
timer obviating the need for extra override features.

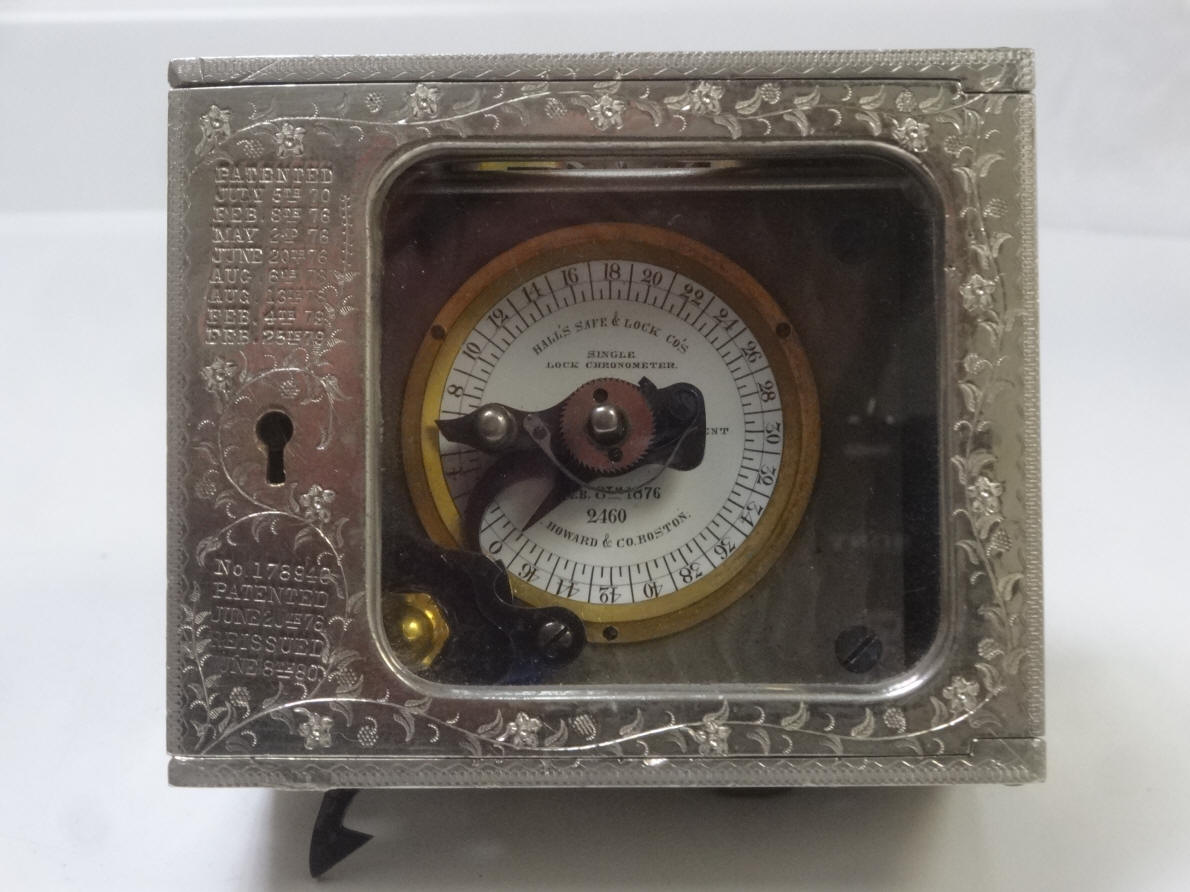

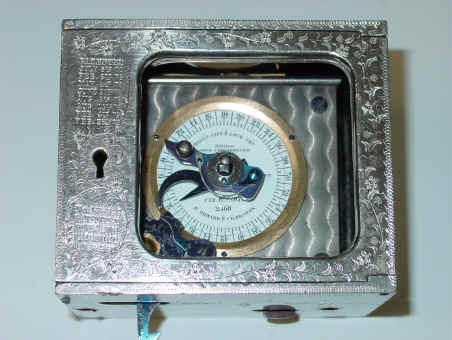

Compare to the same style lock, (B) under the Consolidated name. The example above has a case with it's

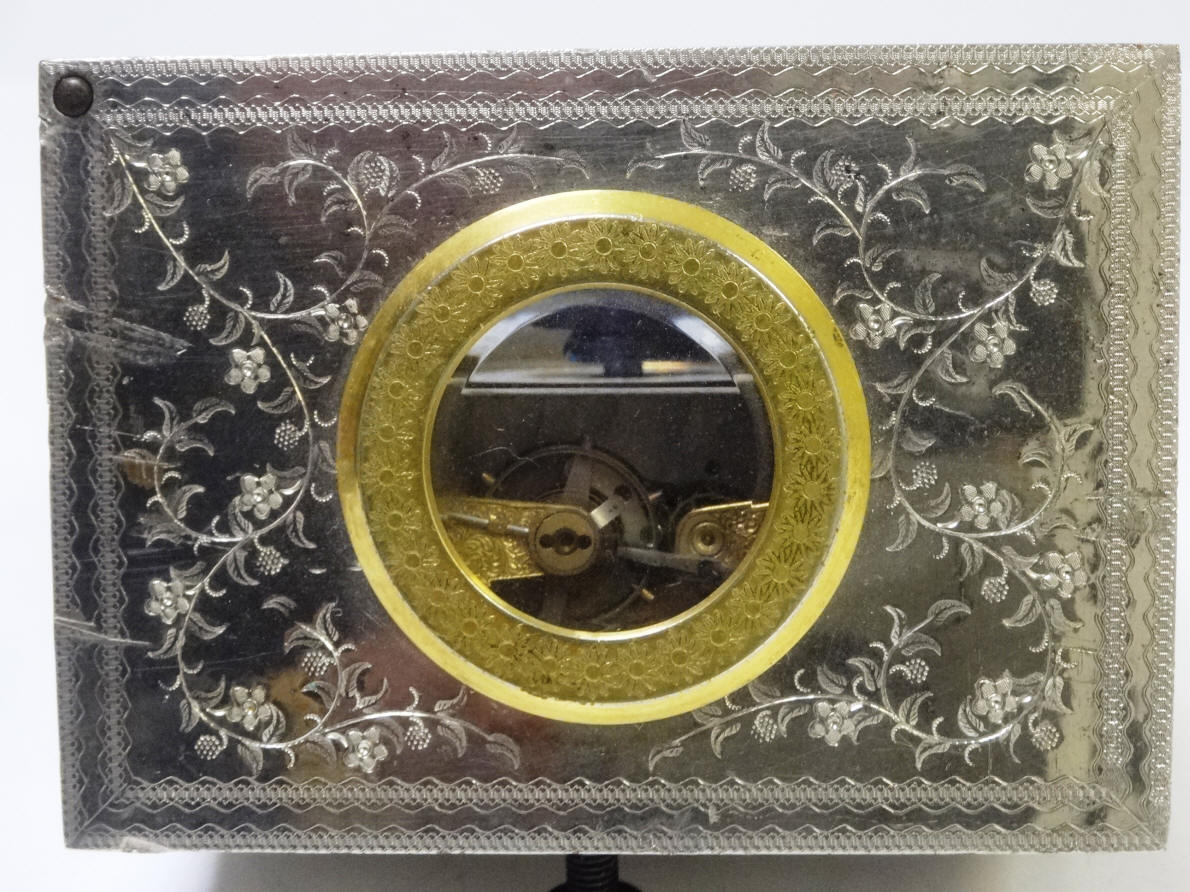

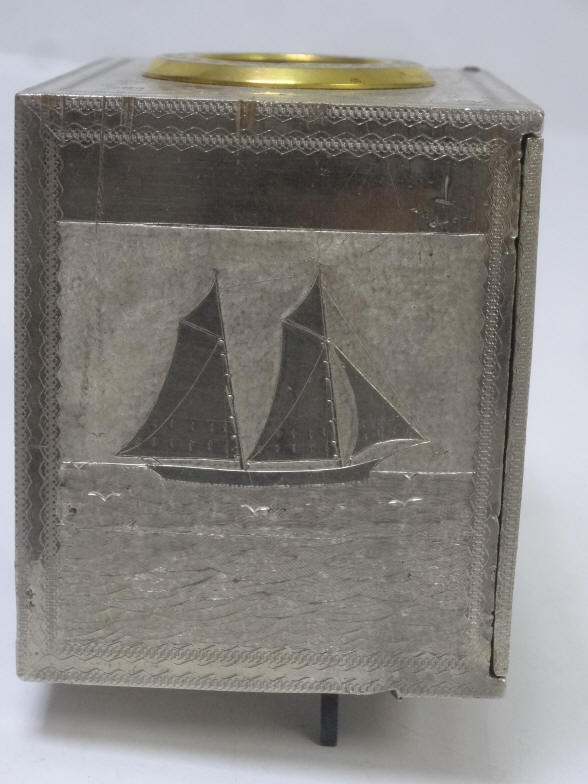

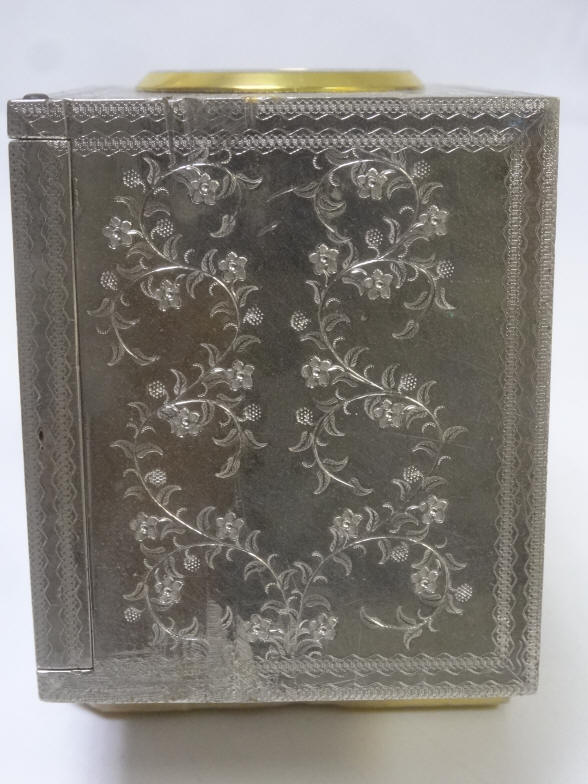

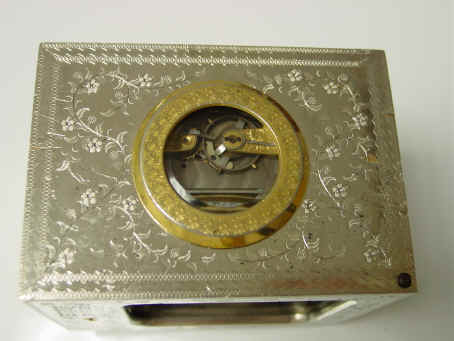

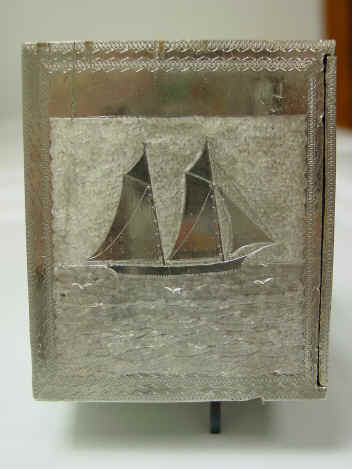

plating in excellent condition and a rare hand engraved, whimsical folk art picture and
flowering vines rather than the machined geometric guilloche scroll work found in later
movement cases. Another example of this unique folk art engraving is
displayed in a larger two
movement Consolidated case. Only eight of these hand engraved cases are currently known. Case #2644.
Movement #2460, 3 5/8" w x 3 1/8" h x 2 5/8" d. file
(1)American Genius Nineteenth
Century Bank Locks and Time Locks, David & John Erroll, pp. 166-168.
